Keep Your Cool

0
267

Quantum Cooler series of coolers are the most powerful and portable cooling systems ever designed for motorsport. Requiring no ice, this driver cooling system is completely maintenance-free, running solely off the strength of a rotary micro-compressor that is as powerful as other compressors 5 x its size.

Rated at 20 liters per minute/16 psi, the Quantum Pro is capable of chilling to under 35º F/1.6ºC. Max amp draw is rated at 18-22 amps (depending on installation and environmental conditions). The system contains less than 1.75 oz./51.7 ml. of Freon sealed within the rotary micro-compressor system.

The Quantum Pro offers many different temperature settings that support varying performance conditions. Dual 220 cfm fans help decrease amp draw, and an illuminated easy-to-read color digital display offers valuable information and data.

Weighing in at 10.5 lbs/4.7 kg, the Quantum Pro is hot-swappable so you can quickly move it from mounting location to mounting location within seconds.

Dash mountable digital control displays are available for installations out of reach from the driver (sold separately)

For the best results, please consider the interior temperature of your vehicle and keep in mind that ducting may be necessary for most installations. Using 4 inch ducting is highly recommended and eliminates the need for a supplemental blower. 3 inch ducting, though effective, can be very restrictive and require the use of a high performance (250+ cfm) blower.

FEATURES:

  • Full color LCD display with extensive data
  • Internal bi-pass valve eliminates the need for a coolant loop. System continues to cool the reservoir even when the shirt is disconnected.
  • Dual 4 inch 220 cfm brush-less fans
  • 50% larger condenser.
  • 25% larger evaporator.
  • LiPo / Li-ion battery support outlet at 24 volts. Supports parallel power at 12 and 24 volts simultaneously, no downtime between power sources
  • Coolant reservoir has double the capacity at 13 oz’s
  • Eco mode maintains system under 18 amps at all times
  • Carbon Fiber Mounting Plate, further reducing weight and heat-soak
  • Two flow sensors for monitoring both sides of the flow valves for easy troubleshooting and maintenance
  • IP65 Rated

INCLUDED:

  • Quantum Cooler Pro
  • Carbon Fiber Mounting Plate
  • Wiring Harness
  • Locking Ball Pins
  • Priming Tube

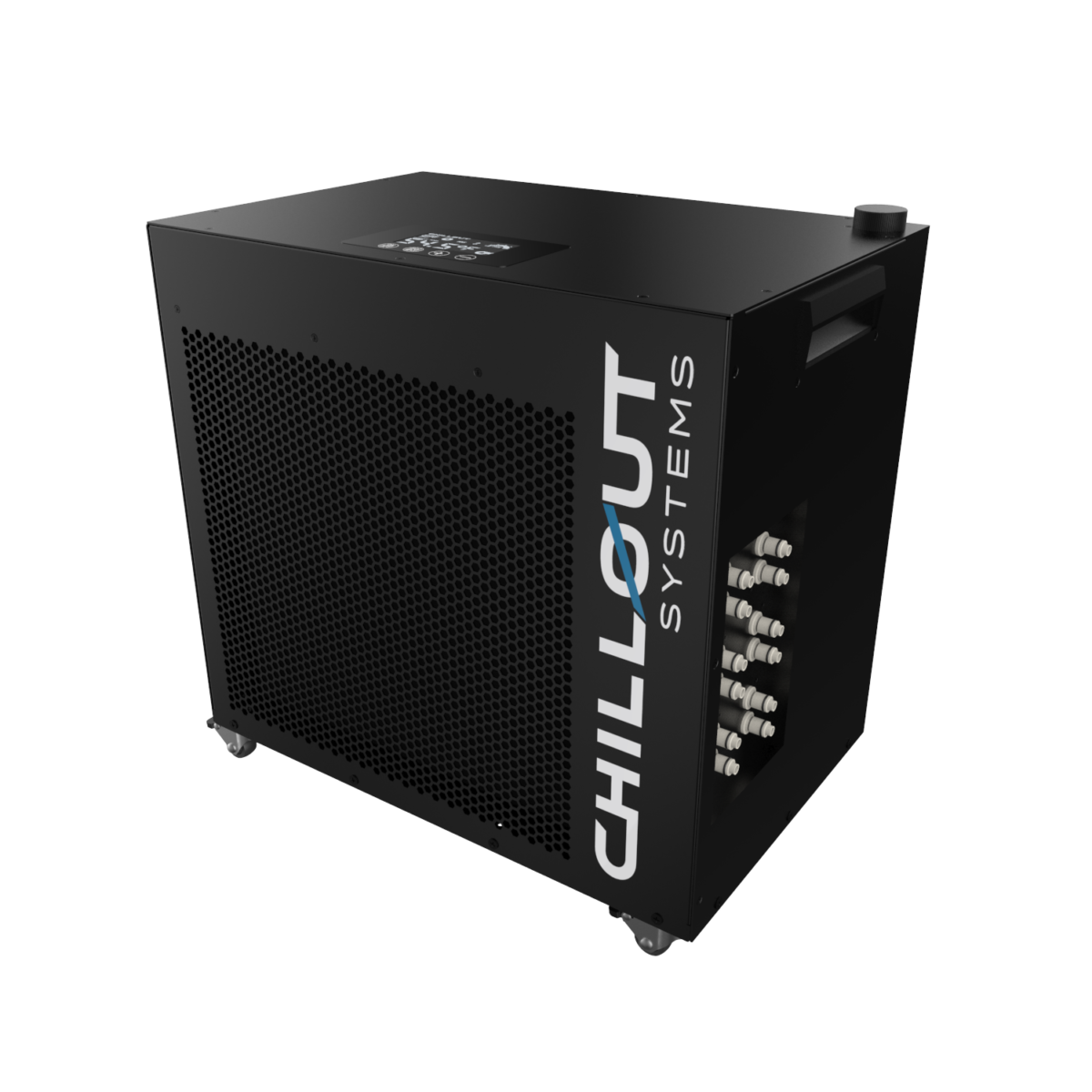

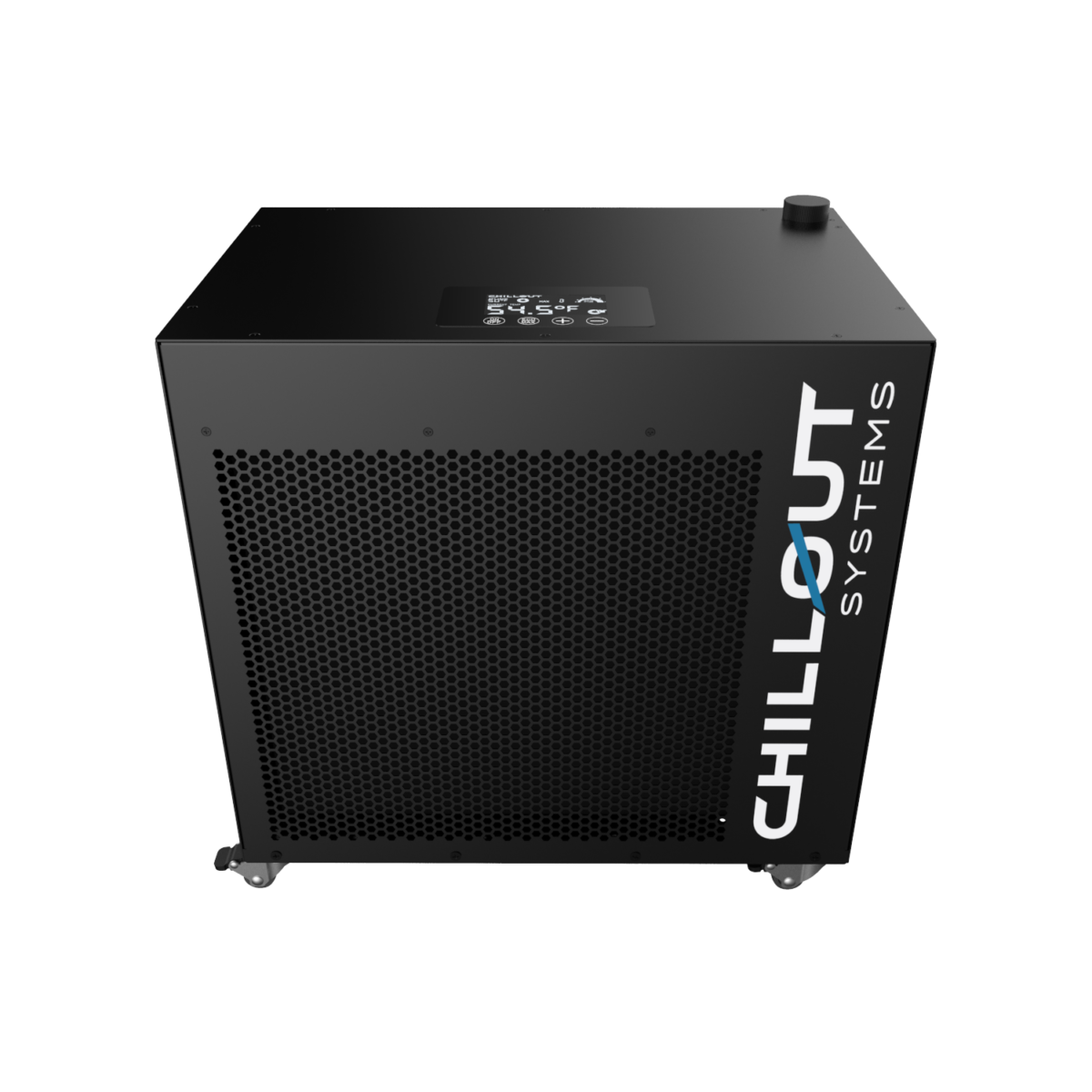

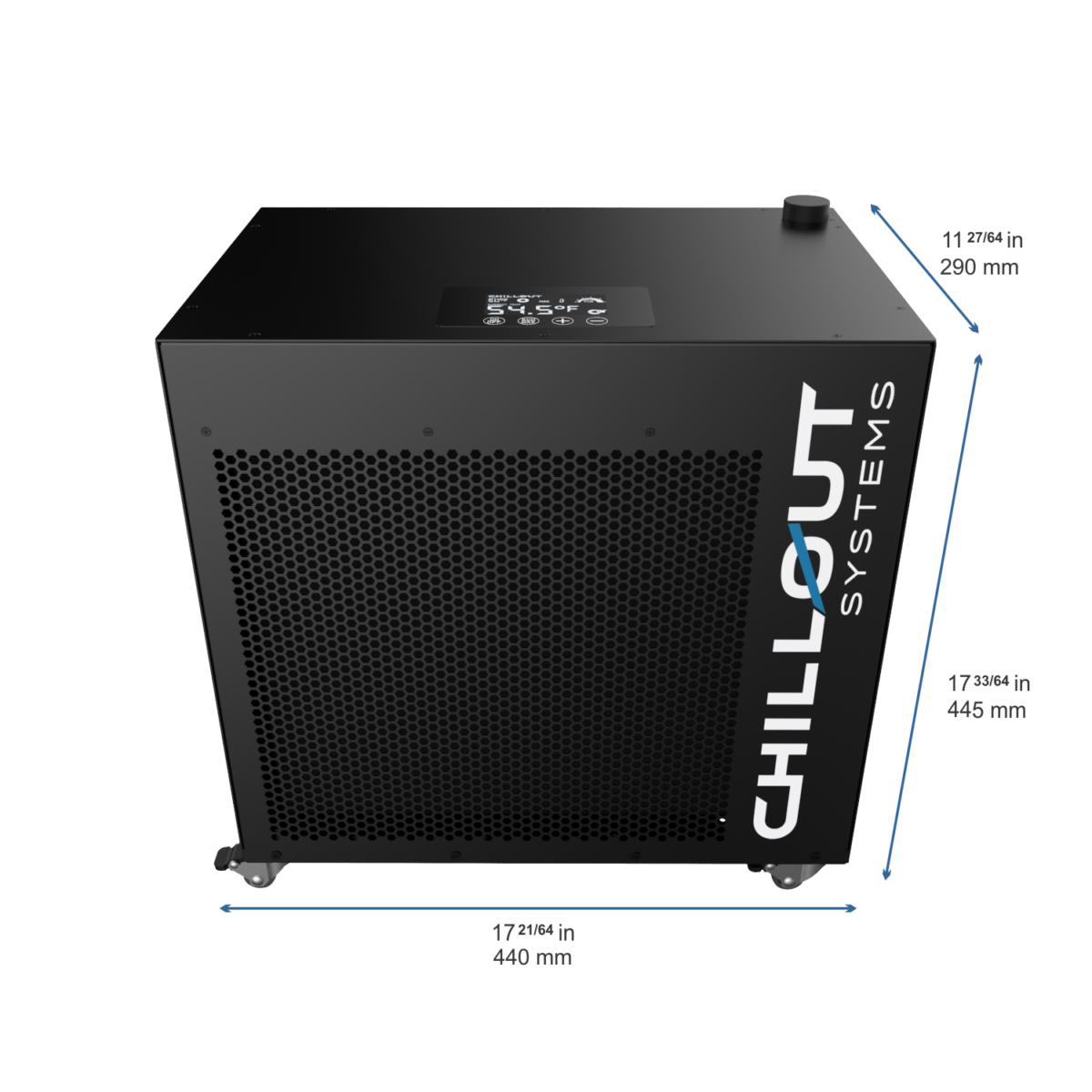

CHILL STATION – PIT COOLER

Pre-cool your drivers while keeping your crew comfortable and focused with the extremely powerful and light weight pit cooler system. The Chill Station easily keeps 6 adults cool (or up to 12 adults with 6 x Y split hoses) thanks to 3 super powerful 1,870 BTU rotary micro-compressors on board. A sizable 40 liter per minute pump system maintains 20 psi at all times ensuring everyone connected remains cool.

A real game changer, the Chill Station creates a micro-climate inside that keeps you sweat free while out of the car. Perfect for endurance teams with multiple drivers and teams that are operating in intense climates on track.

FEATURES:

  • 3 x 1,870 BTU rotary micro-compressors
  • Connect up to 12 adults (using our Y-split hoses)
  • Pumps 40 L per minute at 20 psi

INCLUDES:

  • Chill Station
  • Power Cable

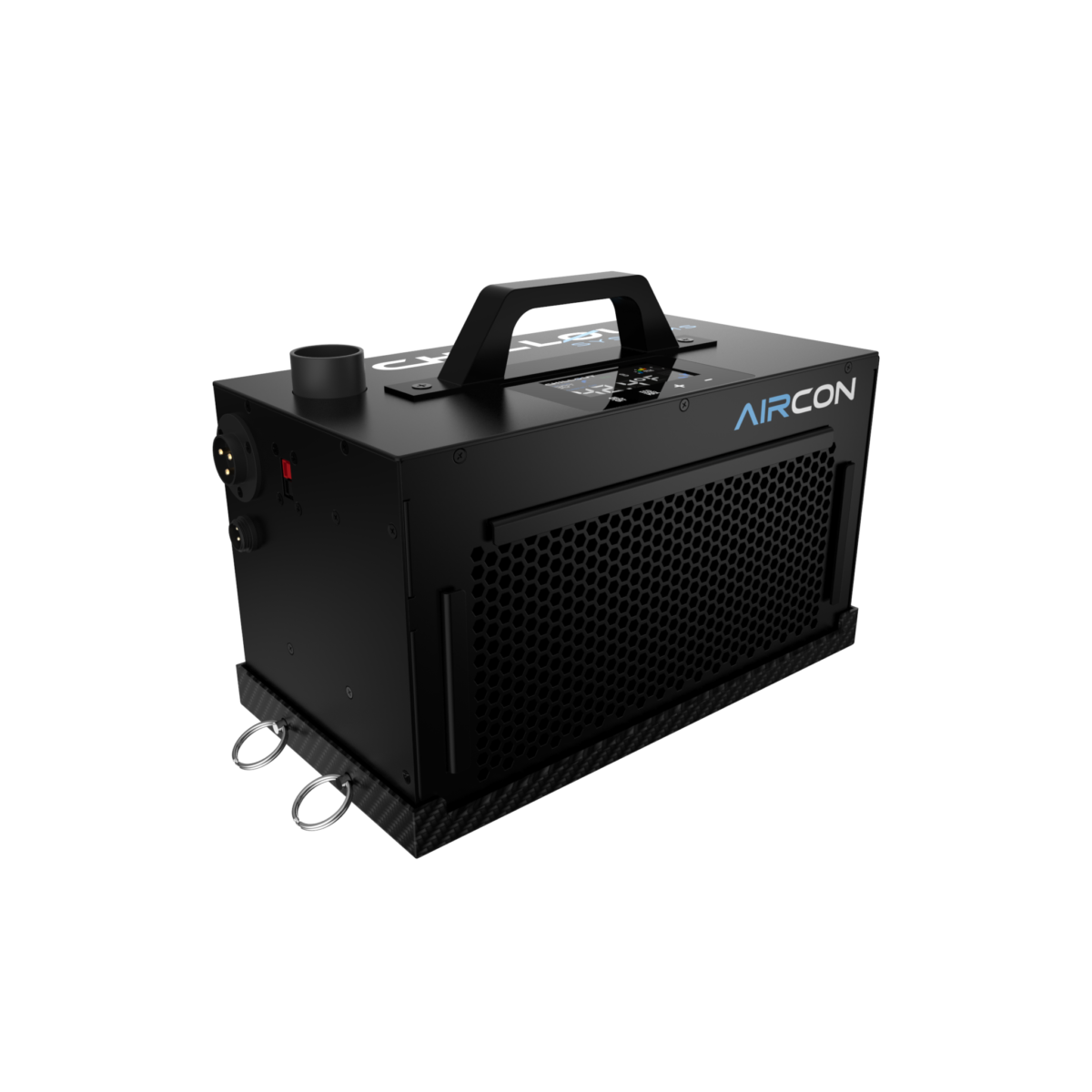

AIRCON HELMET COOLER



Stay focused and in control with the all new AirCon With advanced manufacturing technology, the Air Con is lightweight, powerful and easily transferrable with its quick release system. This is helmet air that is not just cold but dry. Dry air not only helps to keep your head and face moisture free, it also helps to keep you cool. Letting the sweat do with it was designed to do.

VARIABLE SPEED SETTINGS

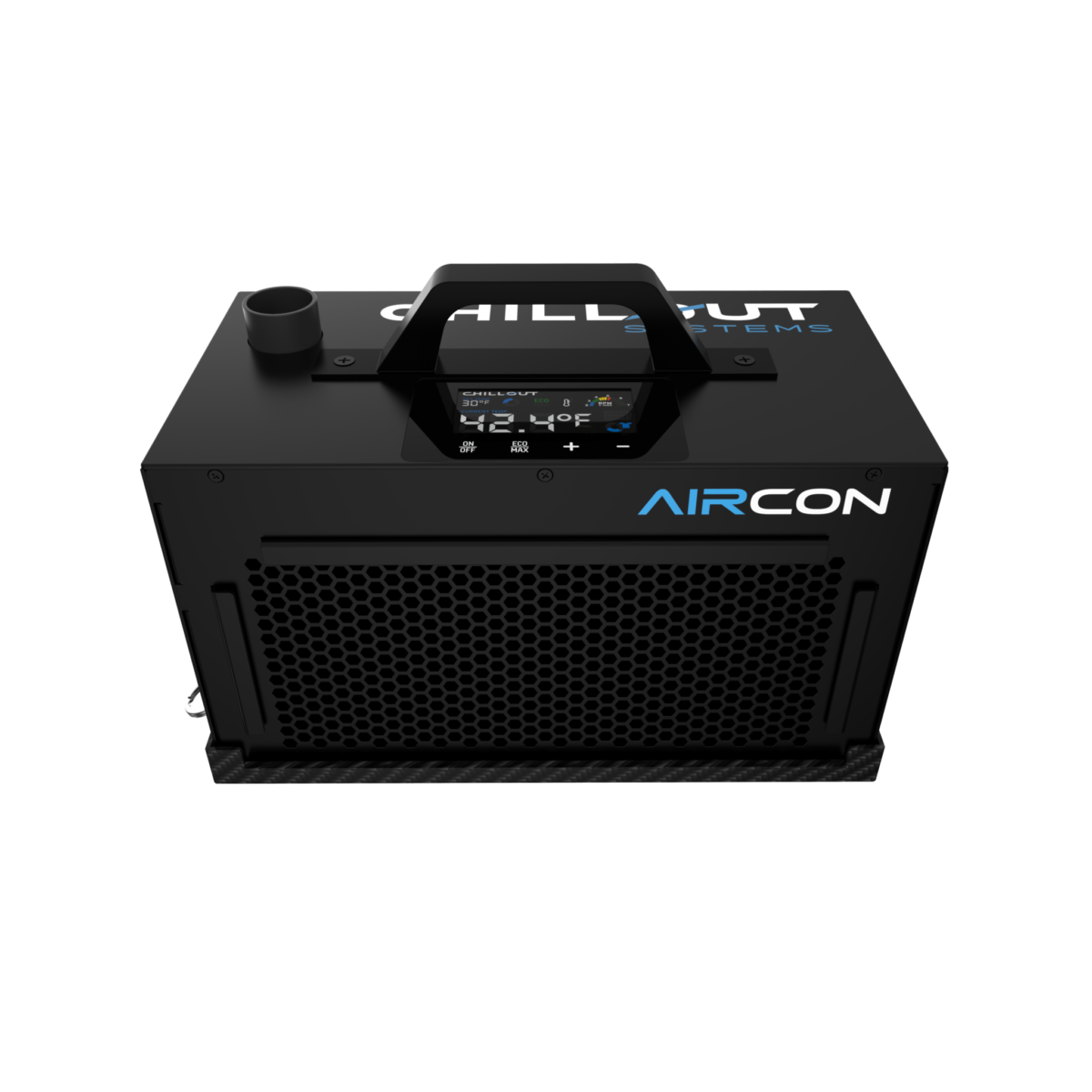

Adjustable controls for a comfortable range of air speeds controlled from a full color LCD display.

LIGHTWEIGHT DESIGN

The Air Con is extremely lightweight and compact able to be mounted virtually anywhere. Similarly sized to our Quantum Pro, the AirCon weighs in at 10.2 lbs.

OPTIMUM PERFORMANCE

Pushing out 31.75 cfm the Air Con keeps the driver in the optimum performance window, able to drop up to 65º below ambient. System typically maintains 50º-55º during endurance racing.

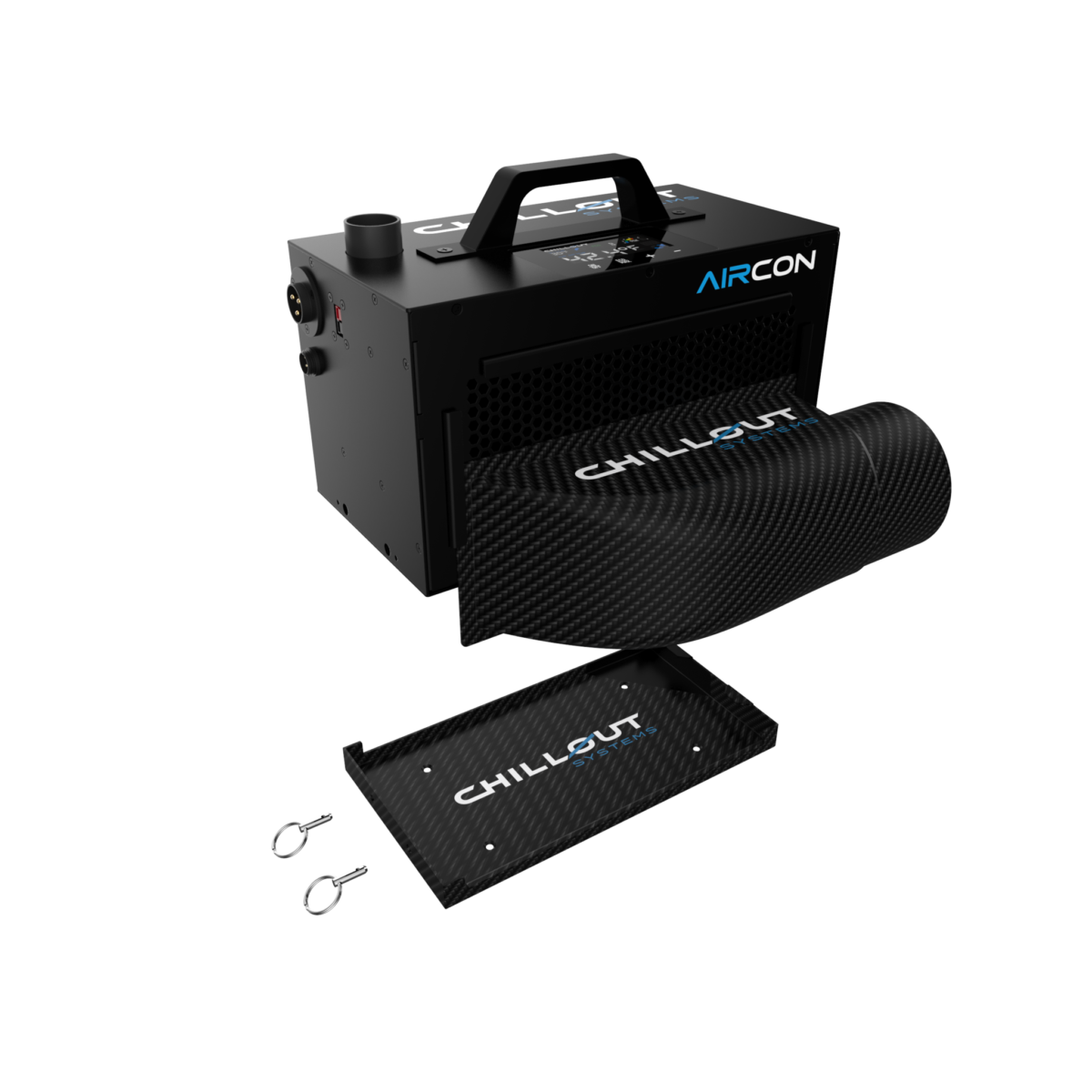

HOT SWAPPABLE

With the pull of two quick-release pins, the Air Con is easily detached from its carbon fiber base for teams on the go.

ABOUT CHILLOUT SYSTEMS:

ChillOut Systems is a global shift in driver cooling. Founder Charles Kline brings over 15 years of product development and manufacturing experience with a team made up of the best engineers and designers from around the globe. Together, ChillOut Systems is the most technologically forward thinking, powerful and lightweight driver cooling system in the world.

Their ethos: Professional, Quality, Efficient. Pushing technology to find new levels of performance. ChillOut is a team of racers, innovators, thinkers and designers. Our products are a testament to the high standards we sustain.

The groundbreaking ice-less cooling system delivers a high standard product that requires minimal labor, eliminating the track day nuances that come with inferior cooling methods such as archaic dry ice. We save you the added weight, time and effort by cutting the bulk out. No ice, no water, no maintenance. Focus on what’s important, winning!
