Powerful, Portable Tire Inflation

0
179

VIAIR Corporation offers one of the most comprehensive lines of fractional horsepower DC oil-less air compressors & air accessories for on-road, off-road, and industrial markets, as well as specialized markets such as medical devices. Our quality-engineered compressors and components are also used in the OEM segment, and have become the industry standard for both 12-volt and 24-volt automotive aftermarket applications worldwide.

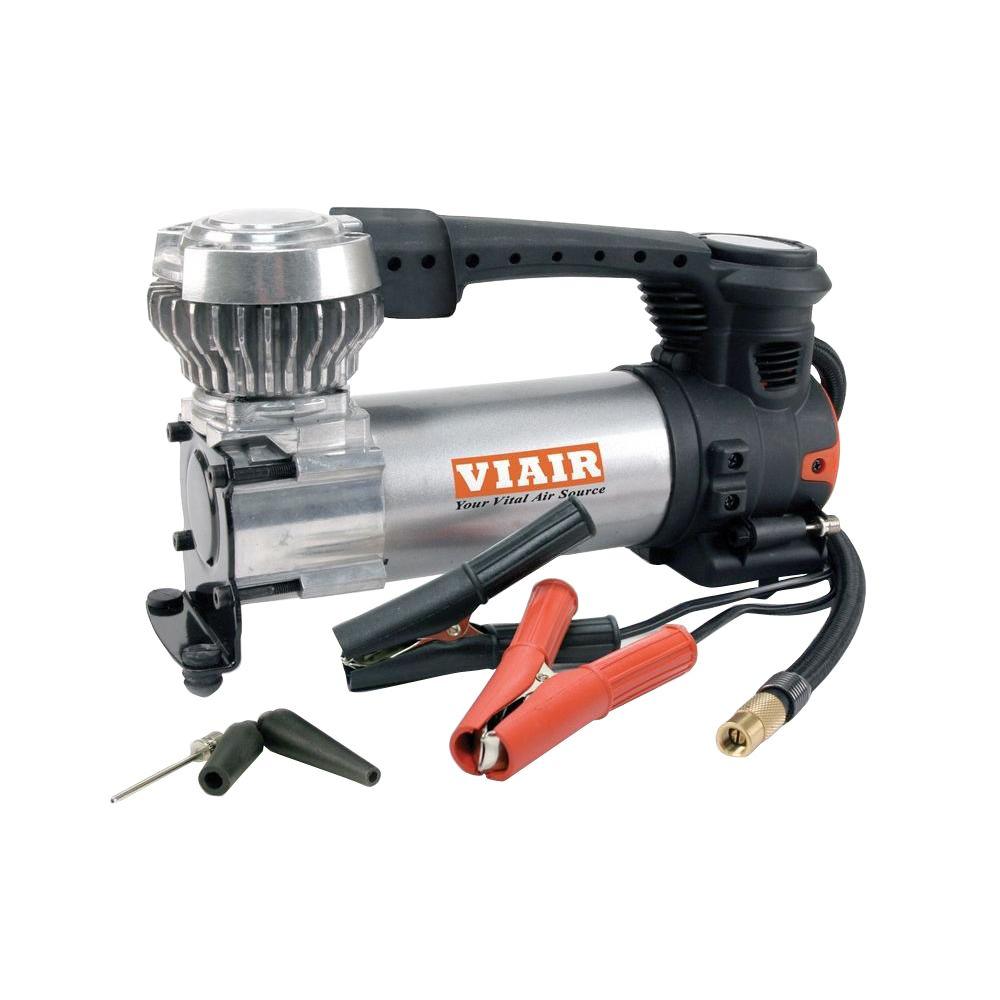

88P is a newly designed, powerful portable tire inflator, capable of inflating up to 33-inch tires. Unlike many other portable air compressors that run off of your vehicle’s 12v power outlet or onboard batteries, the 88P runs directly from your car battery. Attach the heavy-duty battery clamps to your vehicle’s battery and start the engine. Connect to a tire valve stem and turn the unit on. Tire pressure can easily be checked using the gauge incorporated into the top of the unit.

FEATURES:

  • 120 PSI Pressure Gauge
  • LED Work Light / Power Indicator
  • Dual Battery Clamps
  • Solid Brass Twist-on Tire Chuck
  • Deluxe Carry Bag
  • 3 pc. Inflation Tips Kit*

*(Mounted above Rear Compressor Feet)

SPECIFICATIONS:

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 25 min. @ 30 PSI
  • Working Pressure: 120 PSI
  • Amp Draw: 20 Amps
  • Ingress Protection Rating: IP53
  • Ambient Temp: +158°F
  • Ambient Temp: -4°F
  • Dimensions: 9.8″L x 3.2″W x 5.6″H
  • Net Weight: 4.75 lbs.
  • Power Cord Length: 10 ft.
  • Air Hose Length: 16 ft.

FILL RATES:

195/70R14    FILL RATE:

20 to 30 PSI  35 sec. (± 05 sec.)

30 to 40 PSI  40 sec. (± 05 sec.)

225/60R18    FILL RATE:

20 to 30 PSI  50 sec. (± 05 sec.)

30 to 40 PSI  1 min. 00 sec. (± 05 sec.)

31″ X 10.5″  FILL RATE:

0 to 30 PSI    3 min. 50 sec. (± 10 sec.)

15 to 30 PSI  2 min. 05 sec. (± 05 sec.)

33″ X 12.5″  FILL RATE

0 to 30 PSI    5 min. 45 sec. (± 15 sec.)

15 to 40 PSI  2 min. 56 sec. (± 05 sec.)

PRODUCT LINK: http://www.viaircorp.com/portables/88p






WEBSITE: www.viaircorp.com
